Wall Saw Blade

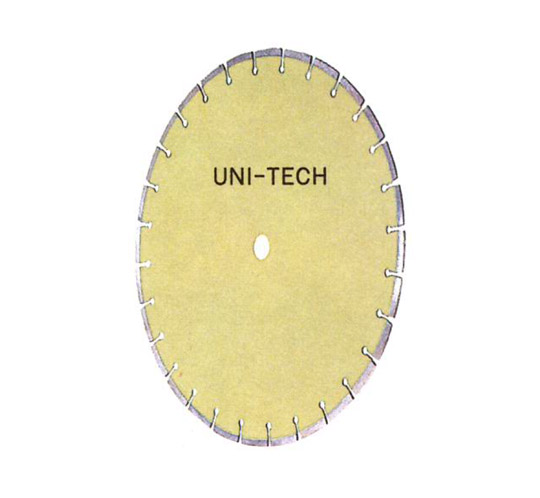

Wall Saw Blade
WALL SAW BLADE HAVE PROVIDED USER WITH EXCELLENT CUTTING PERFORMANCE.
- I) MATERIAL TO BE CUT : CONCRETE WALL / CEILINGS / BUILDING / BRIDGE / DAMS / DOCKS / DRAINAGE RACEWAYS
| MATERIAL HARD NESS |
VERY HARD REINFORCED CONCRETE |
HARD CONCRETE |
MEDIUM CONCRETE |
SOFT CONCRETE BRICK & BLOCK |
|---|---|---|---|---|
| SIZE ( mm) | BOND TYPE | BOND TYPE | BOND TYPE | BOND TYPE |
| 2500 X4.8TX7W | HB | RC | MD | LW |
| 300D X4.8TX7W | ||||
| 350D X4.8TX7W | ||||
| 400D X4.8TX7W | ||||
| 450D X4.8TX7W | ||||
| 1000D X4.8TX7W | ||||
| 1200D X4.8TX7W |
NOTE)
- 1) ADDITIONAL BLADE SIZES ARE AVAILABLE
TECHNICAL NOTE
| MATERIAL CONDITION |
MORE STEEL | <= | STEEL | => | LESS STEEL |
| HARD | <= | CONCRETE HARD NESS | => | SOFT | |
| HIGH | <= | MACHINE HP | => | LOW | |
| SAW BLADE CONDITION |
SOFT | <= | BOND HARDINESS | => | HARD |
| HIGH | <= | DIAMOND CONCENTRATION | => | LOW |
| BLADE USE ( mm) | 450 | 600 | 750 | 900 | 1100 | 1300 | 1400 | 1600 |
| MAX CUTTING DEPTH | 150 | 230 | 300 | 400 | 450 | 550 | 600 | 680 |
