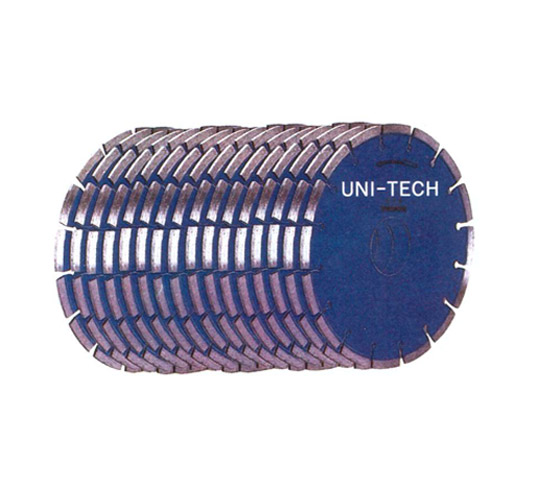

Grooving Saw Blade

Grooving Saw Blade

GROOVING SAW BLADES HAVE PROVIDED USER WITH EXCELLENT CUTTING PERFORMANCE.

SIZE
(mm)		 SEGMENT
DEPTH( mm)		 GROOVING SIZE
WIDE X DEEP X CENTER(mm) mm)		 GROOVING SAW BLADE
HARD TO MEDIUM AGGREGATE MEDIUM TO SOFT AGGREGATE
300D 2.8/3.2/4.8/6.4/9.5/12.7 7.0W GCB BOND GYG BOND
350D 2.8/3.2/4.8/6.4/9.5/12.7 7.0W

NOTE)

  • 1) ADDITIONAL BLADE SIZES ARE AVAILABLE.
  • 2) ALL ABLADES ARE LASER WELDED OR BRAZED.

GROOVING SIZE/SAW BLADE SPECIFICATION

KIND OF GROOVING GROOVING SIZE(mm)
WIDE X DEEP X CENTER(mm)		 APPLICATION
PAVEMENT GROOVING 2.54 X 4.8 X19 PAVEMENT RESTORATION
BRIDGE GROOVING 2.54 X 4.8 X19 PAVEMENT RESTORATION
AIRPORT RUNAWAY 6.4 X 6.4 X38 REMOVE HYDROPLANNING PHENOMINON
LIVESTOCK GROOVING 12.7 X 9.5 X10.7 PROTECT CATTLE
