FORMING WHEEL

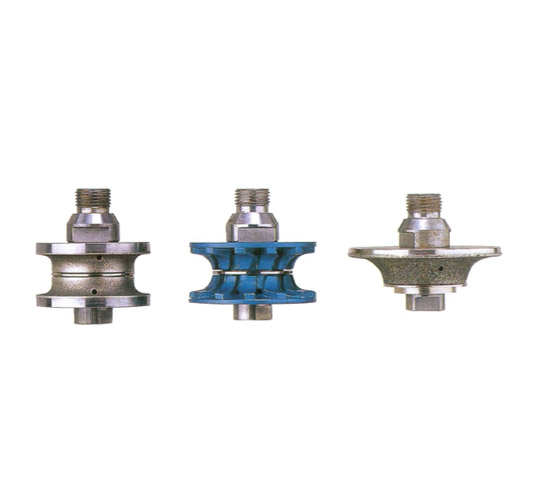

FORMING WHEEL(PORTABLE MACHINE USE)

ELERTOPOLATED TYPE / SEGMENT / RIM TYPE ARE AVAILABLE IN 75D (mm) SIZE

They are offered with various types of connector systems are manufactured with different production cycles according to the type of material to be processed and considering the machinery on which they will be mounted.

STAND ARD SPECIFICATIONS

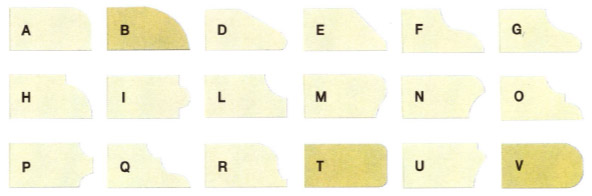

Shape Working
Thickness (mm)		 Mesh Sintered Type Electroplared Type
(for marble)
Segment (for granite) Continuous ( general)
B 20 coarse B20G1-WD B20A1 B20M1
fine B20G2-WD B20A2 B20M2
30 coarse B30G1-WD B30A1 B30M1
fine B30G2-WD 830A2 B30M2
40 coarse B40G1-WD B40A1 B40M1
fine B40G2-WD B40A2 B40M2
T 20 coarse T20G1-ND T20A1 T20M1
fine T20G2-ND T20A2 T20M2
30 coarse T30G1-ND T30A1 T30M1
fine T30G2-ND T30A2 T30M2
40 coarse T40G1-ND T40A1 T40M1
fine T40G2-ND T40A2 T40M2
V 20 coarse V20G1-WD V20A1 V20M1
fine V20G2-WD V20A2 V20M2
30 coarse V30G1-WD V30A1 V30M1
fine V30G2-WD V30A2 V30M2
40 coarse V40G1-WD V40A1 V40M1
fine V40G2-WD V40A2 V40M2
